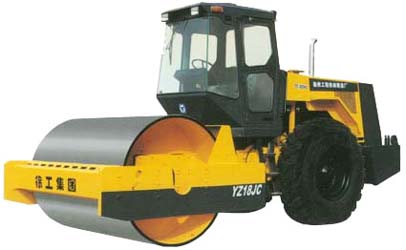

YZ18JC Single-Drum Vibatory Road Rollr






Brief Introduction
YZ18JC road roller is a self-propelled multi-function vibratory roller, which can efficiently compact various soil layer and gravel back-filling and is suitably applied to construction projects, such as: highway, airport, embankment back-filling, seaport, dam, railway, mine, which needs various compaction depth and high efficiency.
This type of road roller is featured in its hydraulic vibrating, mechanical driving, as well as articulated fully hydraulic steering.The vibrating drum has the characteristics of heavy vibrating mass, single-frequency with duel amplitudes so as to compact various paving layer with different depth. Hydraulic system, which adopts the enclosed system consisting of imported piston pump and motor,ensures every performance required by vibrating parameters, Mechanical driving systems consisting of three-gear shifting mechanism, forward/reverse mechanism and differential mechanism; foot brake adopts two double-clip disc-type brake; and the hand brake is of belt-type braking, all of these advantages ensure the machine of high flexibility, great gradeability and braking funtion. The fully hydraulic steering system eases the steering operation. The clutch and foot braking of the machine adopt pneumatic ( air-compensation) control, which greatly reduces the operative force and improve the machine flexbility. The vibrating bearing with imported component improves the drum's reliability. The power system, which is of D6114 water cooling diesel engine with world-wide advanced technology, greatly better the machine's reliability.
The machine adopts the articulated beam-frame so as to make maintenance easy. The driving cab with 3-level shock absorbers and sealed noise-proof provides the operator with comfortable and safe working condition.
Main Technical Specification
Working mass(Kg):18000
Static linear load(N/cm):390
Speed range(Km/h)
I speed:2.86
II speed:5.3
III speed:9.7
Theoretical gradeability(%):30
Min. outer turning radius(mm):5600
Wheel base(mm):2805
Vibrating drum width * diameter(mm):2178*1523
High amplitude(mm):2.1
Low amplitude(mm):1.1
Vibrating frequency(Hz):28
Nominal amplitude @ low/high fre.(mm):2.0
Centrifugal force (kN)
High amplitude:330
Low amplitude:190
Engine
Model:D6114ZG16A
Type:water cooling, supercharged
Max. power @ 2500r/min(kW):115
Standard speed(r/min):1800
Drum module mass(Kg):8500
Total length(mm):5720
Total width(mm):2410
Total hight(mm):3035
