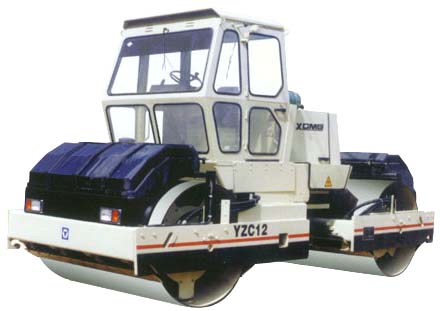

YZC12 Tandem Vibratory Roller






YZC12 ia a heavy-duty tandem vibratory roller, which is mainly used for asphalt-concrete and cement-concrete surface compaction during the engineering construction of high & middle-class highways, airports, parking areas and industrial yards,etc. Also lends itself to be used on the large or middle-scale base course, sub-base and embankment fill compaction.
YZC12 vibratory roller adopts fully hydraulic transmission and fully electrical-hydraulic control. The main components and system are purchased from international manufacturers. This type of machine is featured in variable-infinite- speed driving, dual-amplitude vibrating, fully-articulated steering,etc.
Working mass Kg:12000
Module mass on front drum(Kg):6000
Module mass on rear drum (Kg):6000
Static linear load on front drum(N/cm):276
Static linear load on rear drum(N/cm):276
Speed range(Km/h):0-10
Theoretical gradeability(%):30
Min. outer turning radius(mm):6000
Min. ground clearance(mm):340
Max. shell protuberating(mm):75
Steering angle:±40°
Swinging angle:±12°
Vibrating frequency (low/high)(Hz):45/48
Nominal amplitude @ low/high fre.(mm):0.8/0.4
Centrifugal force @ high/low amp.(kN):140/80
Vibrating drum diameter(mm):1250
Vibrating drum width(mm):2130
Engine
Model:Deutz F6L912
Type:Air-cooling, aspiration automatically
Max. power @ 2500r/min(kW):80
Total length(mm):5330
Total width(mm):2300
Total height(mm):3170
Fuel tank capacity(L):400
Water tank capacity(L):2*600
