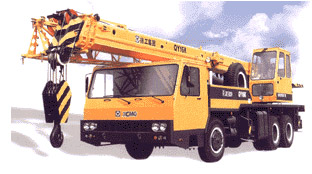

QY16K belongs to one of "K" series products.With a Max.lifting load of 16t/4 m ridius,it has a boom of three sections which are of large arc hexgone profile and a section of jib.Derikking with a single front cylinder,double indepandant winchs,pilot hydr.proportion control system,full and spacious cabin with bright eyeview,environment friendly engine,complete security fittings.The density center of crane is low, creating high stability and high travelling speed.The crane is of high monuvrability and can be used in various working occsions.

Technical data for lifting operation
main lifting performance	,	,
Max.total rated lifting load	t	16
Min.rated working radius	m	3
Turning radius at swing table tail	mm	2765
Max.load moment	,	,
Base boom	kN.m	771.48
Full-extent boom	kN.m	449.8
Full-extent+jib	kN.m	327.7
Outrigger extension distance	,	,
Logitudinal	m	4.58
Lateral	m	5.4
Lifting hight	,	,
base boom	m	10.17
Full-extent boom	m	24.7
Full-extent boom+jib	m	32.3
Boom length	,	,
base boom	m	10
Full-extent boom	m	24.2
Full-extent boom+jib	m	32.35
Attaching angle for jib	°	0?15?30
Lifting speed	,	,
Boom elevating time	,	,
Boom hoisting	S	50
Boom falling	S	27
Boom telescoping time	,	,
Full extending	S	73
Full retracting	S	46
Max.swing speed	r/min	2.1
Outrigger telescoping time	,	,
Outrigger beam extending synchronously	S	21
Outrigger beam retracting synchronously	S	13
Outrigger jack extending synchronously	S	21
Outrigger jack retracting synchronously	S	20
Hoisting speed (single rope)	,	,
Main winch with full load	m/min	82
Main winch without load	m/min	100
Auxiliary winch with full load	m/min	72
Auxiliary winch without load	m/min	100
Sound level outside cabin	dB(A)	118
Sound level inside cabin	dB(A)	90
