QUY50.QUY35

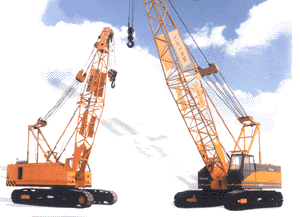

Hydraulic crawler crane
| , |
, |
QUY50 |
QUY35 |
| Max.Rated Lifting
Capacity |
kg |
50000 |
35000 |
| Max.Hoisting Moment |
kN.m |
1815 |
294.92 |
| Main Boom |
m |
13-52 |
10-40 |
| Boom working angle |
(°) |
30-80 |
30-80 |
| Main lifting speed(single
rope) |
m/min |
0-65 |
0-110 |
| Auxiliary
lifting speed(single rope) |
m/min |
0-65 |
0-110 |
| Derricking speed |
m/min |
0-52 |
0-55 |
| Max.Gradability |
(°) |
20 |
20 |
| Slewing
Speed |
r/min |
0-1.5 |
0-1.5 |
| Max.Travel Speed |
Km/h |
0-1.1 |
0-1.34 |
| Ground Pressure |
Mpa |
0.069 |
0.058 |
| Max.Power of engline |
kw |
117.6 |
117.6 |
| Jib |
m |
9.15-15.25 |
9.15-15.25 |
| Offset angle of jib |
(°) |
10/30 |
30 |
|
