Introduction

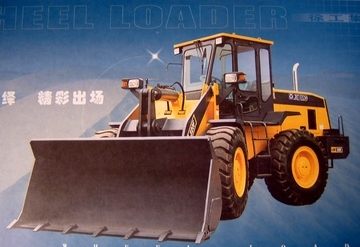

LW420F Wheel loader is mainly for loading
of loose materials,which is widly applied
to construction,mining,railway and highway
building,iron and steel industry,hydraulic
power etc. It is a kind of construction
equipment that can be used for loading,dozing,scraping,lifting,tracting
and so on.It is a kind of construction equipment
with high production -effectiveness.
· With flexible-shaft control, it
is much easier and stable to make gear-shifting
operation.
·Optimized design for bucket,strengthened
teeth and side teeth added,bucket is reliable
and durable for use.
·Adopting the integrated-flow system
for the hyaulic designing, which are of
energy-saving and high efficicy, so reliability
of the system is greatly improved.
·Rational layout of axle load bettered
tractive force of the loader.
·Integal engine hood made of glass
fiber lessens vibration and noise.And there
is a lock on the side door, which is activated
pneumatically, so it is much safer and reliable
and also being easier to make maintenance
for the diesel engine.
·uniquely-designed operation cab,
with "Korean Green" glass, nice-looking
appearance and harmonious color matching.
· The headlights and working lights
are of "Xiaosong" lights which
are uniquely designed with high quality.
·Be optional with various kinds of
working device, and the bucket is also optioanl
in term of bucket capacity, which can make
it match with different working condition.
· Be equipped with heating device
and electric fan. And it is also optional
to equip the heating or cooling air-conditioner.
· With the warning mechanism for
Reverse moving, it is much safer during
working.
· with state-of-art instrument panel
( plasticated).
Main technical
data
| Item |
Parameter |
Unit |
| LXWXH |
6950*2750*3162 |
mm |
| Rated load |
4 |
t |
| Operating weight |
13 |
t |
| Max.Tractive force |
100 |
kN |
| Static side rolling-off
load |
8000 |
kg |
| Min.ground clearance |
485 |
mm |
| Steering angle |
35 Left and right
each |
° |
| Min.turning radius |
5415 |
mm |
| Outside center of
front wheel |
|
|
| Speed |
|
| 1st(F) |
0-11 |
km/h |
| 2nd(F) |
0-35 |
km/h |
| Reverse |
0-15 |
km/h |
| Hoisting height |
5700 |
mm |
| Tractive height |
843 |
mm |
| Engine model |
Shanghai diesel
engine6135K-13b |
|
| Rated power/speed |
128/2000 |
KW/r/min |
| Cylinder/bore/stroke |
6/135/140 |
mm |
| Bucket capacity |
2.2 |
m3 |
| Max.brake-out force |
110 |
KN |
| Raising capacity |
61 |
KN |
| Total cycling time |
11.5 |
s |
| Dumping reach |
2990 |
mm |
| Dumping distance |
1040 |
mm |
| Tools for option |
Cramp,side tilting
bucket |
|
| Tires |
20.5-25 |
|
