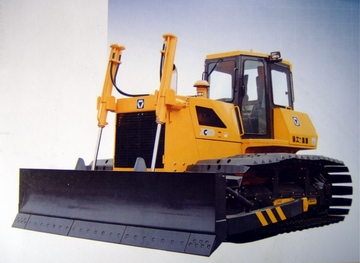

Brief Introduction
· High-performance 6135AK-10 diesel
engine with high torque rise features new
suspension and stretch support structure
for reducing vibration.
· Bevel and column gear torque divider
and transmission, 5-speed forward and 4-speed
reverse double-lever mechanical operation
and coupling sleeve shift for high efficiency
and low noise.
·Constant opening and hydraulically
driving main-clutch with wet-type multi-disc
friction plates and constant meshing hydraulic
steering clutch with wet-type multi-disc
friction plates reduce operator fatigue.
· Final drive with two-stage and
straight gear for higher traction.
· With wide-surface and triangle
track shoes, the ground pressure gets less,
which makes the machibe suitably being applied
to work in the wet land areas.
· Adopting the optimizedly-designed
straight blade and L-type pushing-arm, so
as with more strong pushing force.
· Hydraulic pilot control for low
effort, cylinders in the front place for
reducing system pressure. Control valve
outside the oil tank enlarges the tank capacity,
improves radiation and heightens the hydraulic
system reliability.
· Hexahedral cab and fully enclosed
hood feature excellent shape, good visibility
and easy maintenance.
· Win the luxurious cab are rationally-located
control levers, Grammer operator seat and
non-freon air-conditioner, which is featured
in people-oriented designing and provides
a comfortable working environment for operator.
· Reasonable center of gravity and
stable configurations allow excellent cushioning
between the main frame and undercarriage.
· Adoting the automatic tensioning
system of track shoes and automatic oil-filling
system effectively reduces the operator
fatigue.
· It is optional to equip the garbage-pushing
blade and hydraulic winch to make the machine
satisfy different working demand.
Main Technical Specification
| Items |
Parameter |
Unit |
| Engine model |
6135AK-10 |
|
| Rated power |
103 |
KW |
| Max. traction force |
123 |
kN |
| Ground pressure |
0.028 |
MPa |
| Gradient angle ( vertical/horizontal) |
30/25 |
° |
| Width of track shoe |
1060 |
mm |
| Operating weight |
19000 |
kg |
| Contour dimension |
|
|
| L×W×H |
5445×4000×3150
|
mm |
| Travelling speed |
Forward 5 gears
2.72-14.46 |
km/h |
| |
Reverse 4 gears
3.81-11.37 |
km/h |
| Blade width×height |
4000×932 |
mm |
| Max. blade cutting depth |
400 |
mm |
| Max. blade raising height |
1020 |
mm |
| Max.bulldozing force |
24 |
N |
| Min. ground clearance |
450 |
mm |
