Brief Introduction

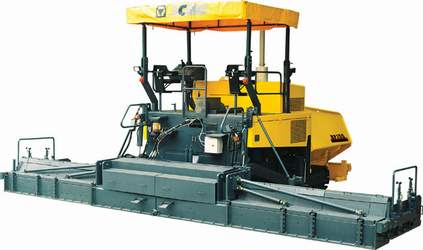

* This type of rp751 paver is widely used
for paving road base and surface, suitable
for paving asphalt concrete and stabilized
materials. It is an ideal equipment for
paving all grades of roads.
* Driving system with fully hydraulic driven
and electronic control;
* Material level controlled with sonic sensor
technology;
* Auta-level~ing system with electric auto-levelling
technigne;
* Scrod with specific technology of dual
temper barn and electric heating;
* Centralized lubricating system ensures
automatic and even lubricant feeding to
bearing in high temperature;
* Adopted with an advanced, mature and reliable
D6114ZG1B or Deutz BF4M1013C
Watecooling Diesel Engine, with a strong
power;
* Travelling crawlers with large contacting
surface ensure safe and reliable working
performance even on pllr conditioned roads;
* Distributing auger, matedal distributing
bottom plate and acreed boffom plate made
of high wearing distributing bottom plate
and scrod bottom plate made of high wearing
resistant alloy and imported wearing-resistant
material;
* Contel panel shews directly and cleaay
all working functions, paving, travelling
speed; and could be mounted either at right
or left hand.
MAIN TECHNICAL PARAMETER
| ltem |
Unit |
Parameter |
| Basic
Working Width |
m |
3.0 |
| Max
working Width |
m |
7.5 |
| Max
Paving Thickness |
mm |
380 |
| Paving
Speed |
m/min |
0~10 |
| Traveling
Speed |
km/h |
0~3.5 |
| Theoretical
Productivity |
t/h |
600 |
| Hopper
Capacity |
t |
13 |
| Gradient
Ability |
% |
20 |
| Smoothness |
mm/3m |
3/5 |
| Slope
Leveling Tolerance |
% |
±0.03 |
| Engine
Type |
|
D6114ZG1B(shanghai)/BF4M1013C(Deutz) |
| Rated
Output |
kw |
140
112 |
| Speed |
rpm |
2400
2300 |
| Generator
Power |
kw |
20 |
| Tank
Capacity |
L |
180 |
| Weight |
t |
16.5~19.5 |
| Overall
Dimension |
mm |
6130×3000×3815 |
