Brief Introduction

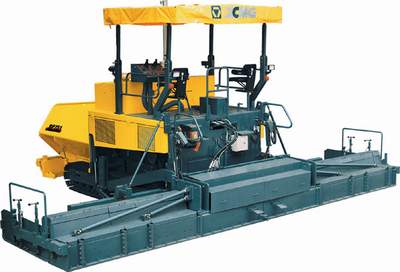

* RP601?RP701 paver is widely used for paving
road base and surface, especially suitable
for paving road base and surface, especially
suitable for paving asphalt concrete.
* It could be operated easily and convenient
for having the high automation with fully
hydraulic driven and electronic control,
automatic centralized lubricating system,
electric-heating system, infinitely hydraulic
adjusted working width. The main switch
and automatic leveling system of the control
system ensure ideal smoothness and working
quality.
MAIN TECHNICAL PARAMETER
| ltem |
Unit |
Parameter |
| Basic
Working Width |
m |
2.5 |
| Max
working Width |
m |
6.0/7.0 |
| Max
Paving Thickness |
mm |
300 |
| Paving
Speed |
m/min |
0~15 |
| Traveling
Speed |
km/h |
0~4.2 |
| Theoretical
Productivity |
t/h |
400 |
| Hopper
Capacity |
t |
13 |
| Gradient
Ability |
% |
20 |
| Smoothness |
mm/3m |
3 |
| Slope
Leveling Tolerance |
% |
±0.02 |
| Engine
Type |
|
BF4M1013C(Deutz) |
| Rated
Output/Speed |
kw/rpm |
112/2300 |
| Tank
Capacity |
L |
180 |
| Generator
Power |
kw |
21 |
| Weight |
t |
16.5~22.0 |
| Overall
Dimension |
mm |
6230×2500×3815 |
